Paint Industries G4 Synthetic Fiber Filtration Material Filter Media Pre Filter Mats

5000 Square Meters
MOQ
$1.20(5000 - 9999 Square Meters) $0.50(>=10000 Square Meters)
Prix
Paint Industries G4 Synthetic Fiber Filtration Material Filter Media Pre Filter Mats
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Bevera
Condition: New
Efficiency: G2 G3 G4
Construction: filter media
Dimension(L*W*H): Customer Requirs
Weight: Light Weight
Warranty: Unavailable
After Warranty Service: Online support
Local Service Location: None
Showroom Location: Germany
Certification: ISO9001:2008
Thickness: 70/100mm
Application: Paint industries
Material: Glassfiber
Standard: EN 779-2012
Operating temperature: Max 100℃ (212℉)
Operating humidity: 100% RH
Flame resistance according to: DIN 53438 F1
Model Number: Customized
Key word: filter mats
Name: G4 Synthetic fiber filtration material filter media pre filter mats
Informations de base
Certification: ISO9001:2008
Model Number: Customized
Conditions de paiement et expédition
Packaging Details: PE pocket
Supply Ability: 10000 Roll/Rolls per Month
Description de produit

Product Description

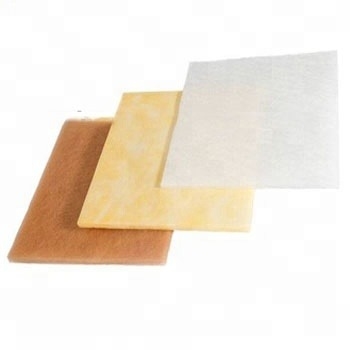

Paint-stop Mats

Descriptions

Features:
- The filter mats are strong squeezable fiber and made of high performance glass fiber with durable thermal bonding
- Mats are of progressive structure with big dust holding capacity
- The fixed medium is utilized for storing the paint mist
- The fixed antibiosis adhere to the surface of the media
- The color side is the clean air side
- To supply in rolls or in cut pieces according to custom- er's specification
-Silicon free

Standard: EN 779-2012

Operating temperature: Max 100 (212℉)

Operating humidity: 100% RH

Flame resistance according to : DIN 53438 F1

Application

- Specially designed for arresting paint mist and dust in paint-spray booths

- We suited for the dry-handling paint-spray booths as for the automobile furniture and machinery parts painting

Specification

Filter Class (EN 779-2012) Product Thickness (mm)Weight (g/m2) Air Velocity (m/s) Initial Pressure (Pa) Nominal Volume Flow (m3/h)Average Capture Rate (%)
G3 Paint-stop G3 70240-250 0.7-1.75 7-40 2500-6300 93-97
G4 Paint-stop G4 1003500.7-1.75 14-60 2500-6300 98-99
* Standard mats 20 x 2m
